Introduction

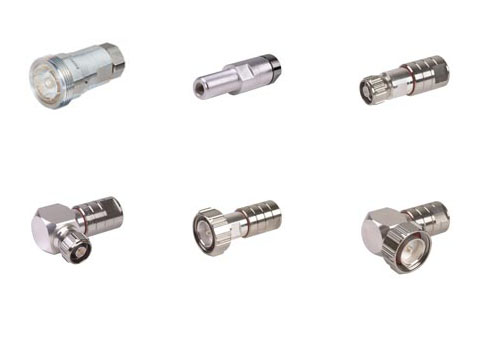

N Male, N Female, Din Male, Din Female Connectors for 1/2" Superflexible Feeder Cable are threaded RF connectors used to join 1/2" Superflexible Feeder Cable.
Features
Working Environment
| Operating Temperature | -65 ~ +165 °C |
| Relative Humidity | ≤95% @ +40°C |
| Atmospheric Pressure | 5.4 kPa |
| Vibration | 150 m/s2 (10~2000 Hz) |
| Shock | 500 m/s2 |
Key Performance
| Characteristic Impedance | 50 Ω |
| Frequency Range | N-type: up to 11GHz / DIN-type: up to 7.5GHz |
| Contact Resistance | Inner Conductor: ≤ 1.0mΩ (N-type) / ≤ 0.4mΩ (DIN-type) Outer Conductor: ≤ 1.0mΩ (N-type) / ≤ 1.5mΩ (DIN-type) |
| Insulation Resistance | ≥ 5GΩ(N-type) / ≥ 10GΩ (DIN-type) |
| Proof Voltage at Sea Level | N-type: 2.5 kV / DIN-type: 4 kV |
| Working Voltage at Sea Level | 1.0 kV |
| RF Leakage | ≤ -90dB (2~3 GHz) |
| Insertion Loss | ≤ 0.15dB (10GHz) |
| VSWR | N-type: ≤ 1.10 / DIN-type: ≤ 1.10 |
| Mechanical Lifetime | 500 operations |
Materials and Surface Finish
| Resilient Contact Members | High strength copper alloy, silver plated (with MIL-types center conductor gold plated) |
| Insulation | PTFE/FEP |
| Center and Outer Conductor Parts | Copper alloy, silver plated (with MIL-types center conductor gold plated) |
| Other Metal Parts | Copper alloy, bright nickel plated |
| Gaskets | Silicone rubber |
